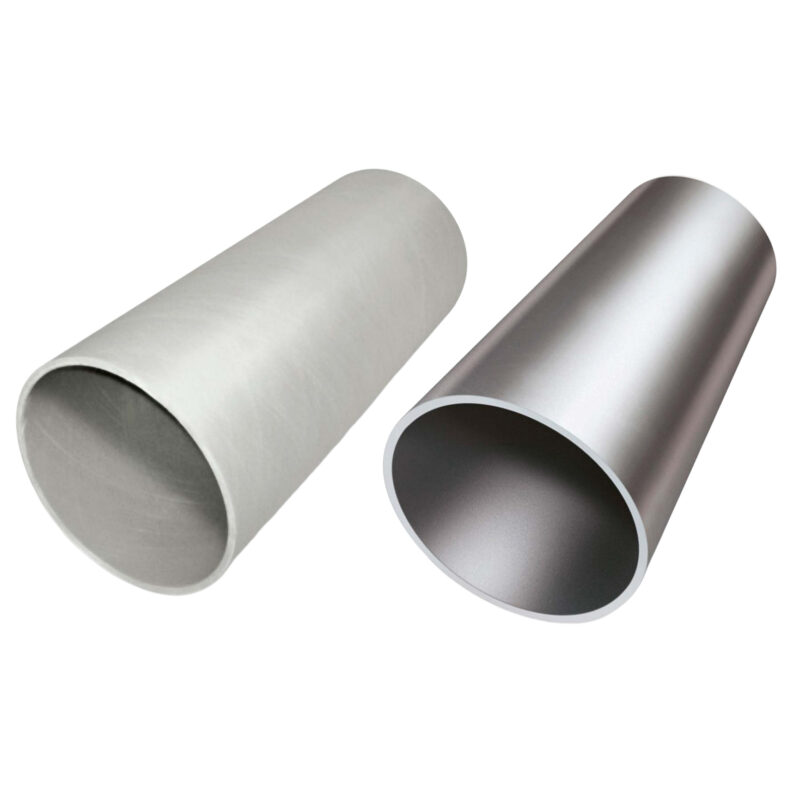

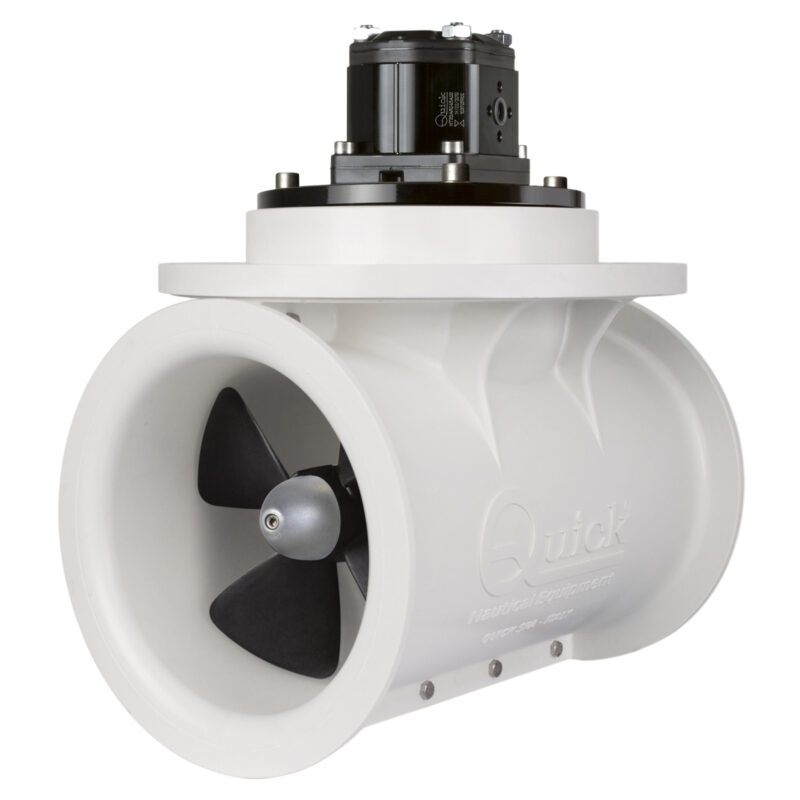

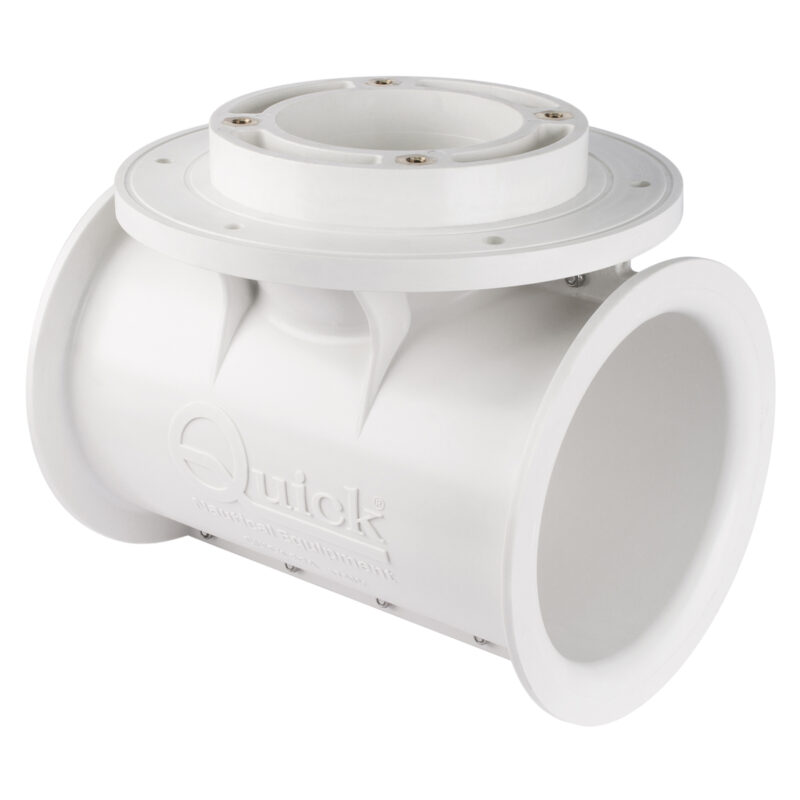

QUICK侧推器艉推管
| Models 产品型号 | STERN140 | STERN185 | STERN250 | STERN300BMC | STERN386 | STERN513 | STERN513A |
|---|---|---|---|---|---|---|---|
| Ø Tunnel 管直径 | Ø140mm | Ø185mm | Ø250mm | Ø300mm | Ø386mm | Ø513mm | Ø513mm |
| Materials 材质 | BMC材质 | BMC材质 | BMC材质 | BMC材质 | GRP材质 | GRP材质 | 钢材质 |
| propeller 螺旋桨 | 单螺旋桨 | 单螺旋桨 | 双螺旋桨 | 双螺旋桨 | 双螺旋桨 | 双螺旋桨 | 双螺旋桨 |

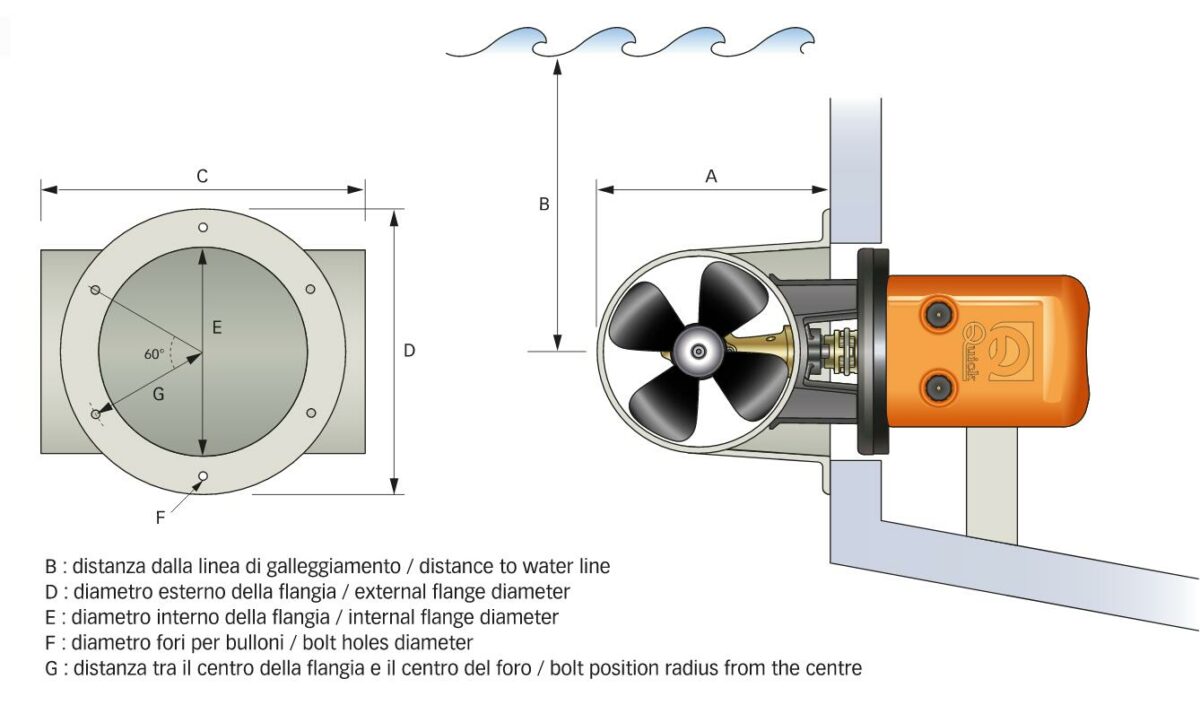

| A | 176mm | 260mm | 325mm | 380mm | 485mm | 660mm | 660mm |
| B | 130mm | 170mm | 230mm | 280mm | 385mm | - | - |
| C | 250mm | 340mm | 420mm | 490mm | 600mm | 1000mm | 1000mm |
| D | 250mm | 300mm | 380mm | 380mm | 550mm | 760mm | 760mm |
| E | 158mm | 210mm | 255mm | 255mm | 386mm | 513mm | 513mm |
| F | 9mm | 11mm | 11mm | 11mm | 13mm | 18mm | 18mm |
| G | 105mm | 128mm | 160mm | 160mm | 240mm | 340mm | 340mm |

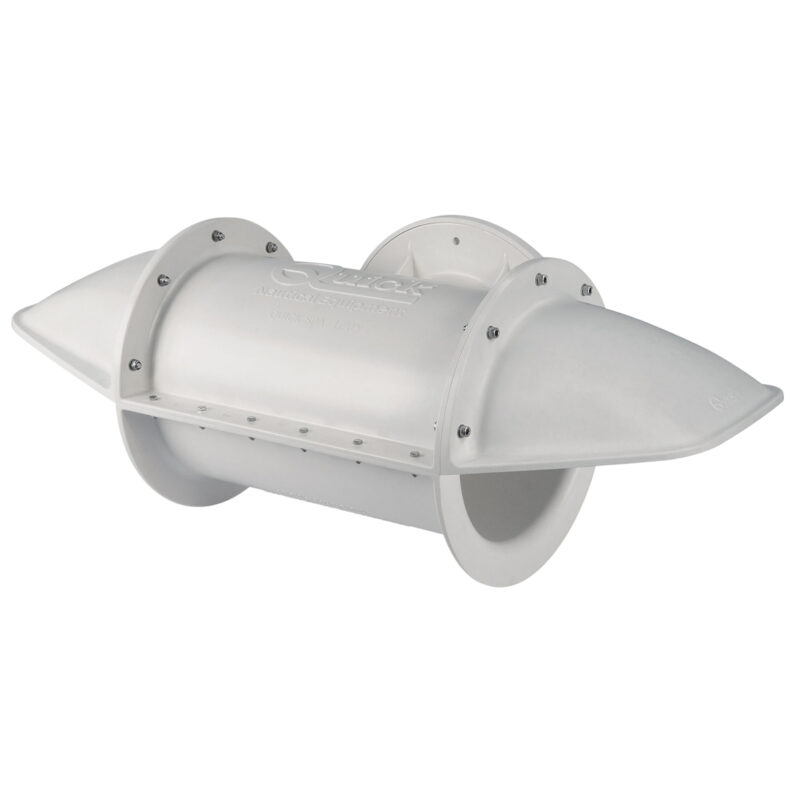

QUICK艉推管导流罩
| Models 产品型号 | COWL140 | COWL185 | COWL250 | COWL300BMC | COWL386 |
|---|---|---|---|---|---|
| Ø Tunnel 管直径 | Ø140mm | Ø185mm | Ø250mm | Ø300mm | Ø386mm |
| Materials 材质 | BMC材质 | BMC材质 | BMC材质 | BMC材质 | GRP材质 |
| propeller 螺旋桨 | 单螺旋桨 | 单螺旋桨 | 双螺旋桨 | 双螺旋桨 | 双螺旋桨 |
| Overall length 两翼总长(含尾推管) | 510mm | 683mm | 886mm | 1049mm | 1302mm |
