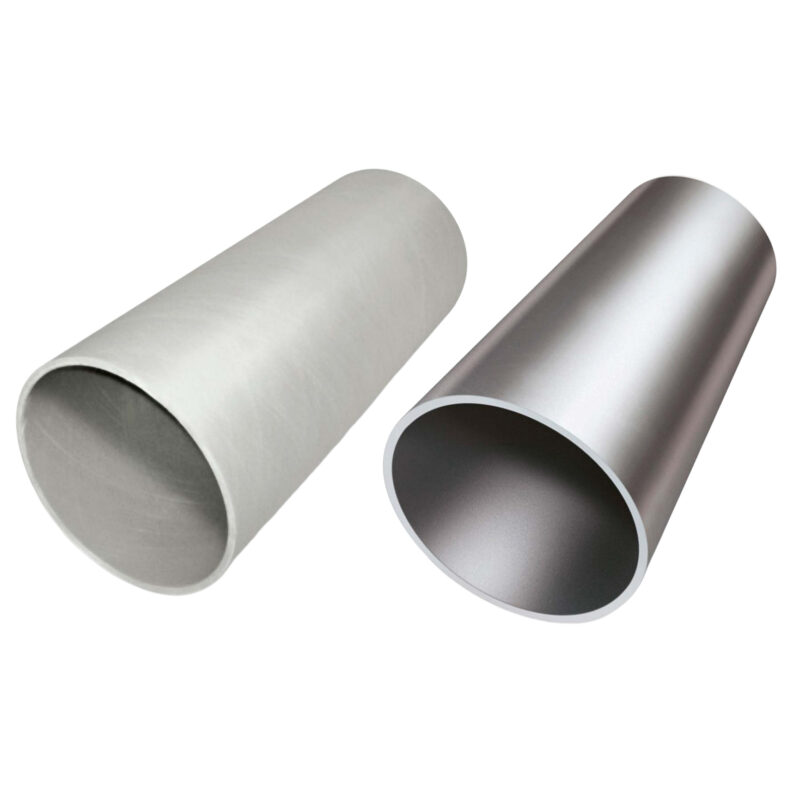

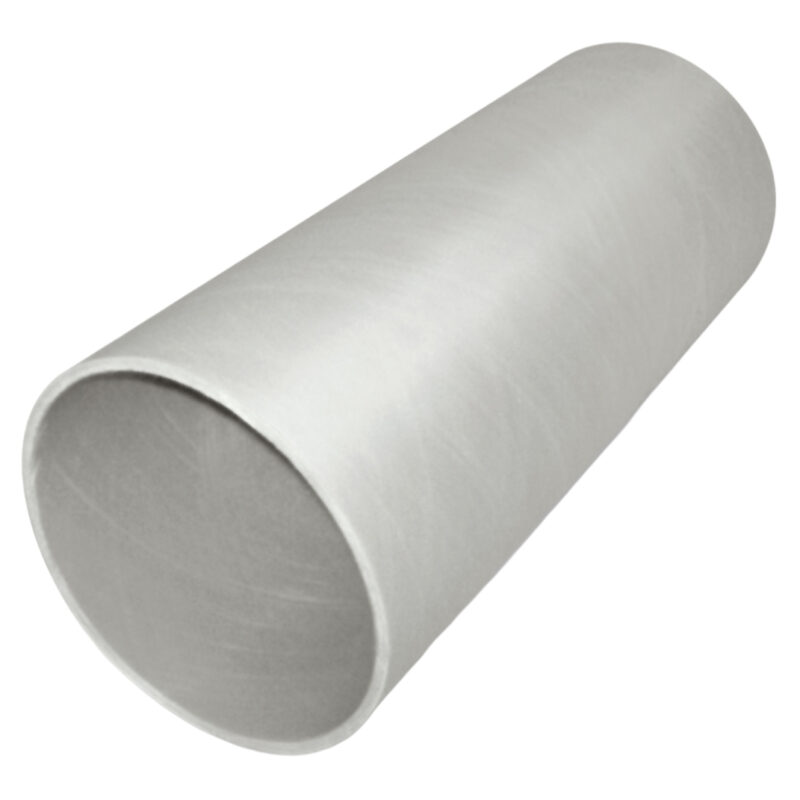

QUICK側推器艏推管-GRP材質
| Model 產品型號 | Øtunnel 管直徑 | thickness 厚度 | lenght 管長 |
|---|---|---|---|
| TNL110F075 | 110 | 5mm | 750mm |
| TNL110F100 | 110 | 5mm | 1000mm |
| TNL110F150 | 110 | 5mm | 1500mm |
| TNL110F200 | 110 | 5mm | 2000mm |
| TNL110F300 | 110 | 5mm | 3000mm |
| TNL125F075 | 125 | 5mm | 750mm |
| TNL125F100 | 125 | 5mm | 1000mm |
| TNL125F150 | 125 | 5mm | 1500mm |
| TNL125F200 | 125 | 5mm | 2000mm |
| TNL125F300 | 125 | 5mm | 3000mm |
| TNL140F075 | 140 | 5mm | 750mm |
| TNL140F100 | 140 | 5mm | 1000mm |
| TNL140F150 | 140 | 5mm | 1500mm |
| TNL140F200 | 140 | 5mm | 2000mm |
| TNL140F300 | 140 | 5mm | 3000mm |
| TNL185F075 | 185 | 5.5mm | 750mm |
| TNL185F100 | 185 | 5.5mm | 1000mm |
| TNL185F150 | 185 | 5.5mm | 1500mm |
| TNL185F200 | 185 | 5.5mm | 2000mm |
| TNL185F300 | 185 | 5.5mm | 3000mm |
| TNL250F100 | 250 | 6.5mm | 1000mm |
| TNL250F150 | 250 | 6.5mm | 1500mm |
| TNL250F200 | 250 | 6.5mm | 2000mm |
| TNL250F300 | 250 | 6.5mm | 3000mm |
| TNL300F100 | 300 | 9.5mm | 1000mm |
| TNL300F150 | 300 | 9.5mm | 1500mm |
| TNL300F200 | 300 | 9.5mm | 2000mm |
| TNL300F300 | 300 | 9.5mm | 3000mm |
| TNL386F100 | 386 | 14mm | 1000mm |
| TNL386F150 | 386 | 14mm | 1500mm |
| TNL386F200 | 386 | 14mm | 2000mm |
| TNL386F300 | 386 | 14mm | 3000mm |
| TNL513F150 | 513 | 16mm | 1500mm |
| TNL513F200 | 513 | 16mm | 2000mm |
QUICK側推器艏推管-E355材質
| MODEL 型號 | ØTUNNEL 管直徑 | THICKNESS 厚度 | LENGHT 管長 |
|---|---|---|---|
| TNL125A075 | 125mm | 4mm | 750mm |
| TNL125A100 | 125mm | 4mm | 1000mm |
| TNL125A150 | 125mm | 4mm | 1500mm |
| TNL125A200 | 125mm | 4mm | 2000mm |
| TNL140A100 | 140mm | 6.3mm | 1000mm |
| TNL185A150 | 185mm | 4mm | 1500mm |
| TNL250A150 | 250mm | 6.3mm | 1500mm |
| TNL250A200 | 250mm | 6.3mm | 2000mm |
| TNL300A100 | 300mm | 11mm | 1000mm |
| TNL300A200 | 300mm | 11mm | 2000mm |
| TNL300A240 | 300mm | 11mm | 2400mm |
| TNL300A300 | 300mm | 11mm | 3000mm |
| TNL386A100 | 386mm | 10mm | 1000mm |
| TNL386A150 | 386mm | 10mm | 1500mm |
| TNL386A200 | 386mm | 10mm | 2000mm |
| TNL386A300 | 386mm | 10mm | 3000mm |
| TNL513A100 | 513mm | 22mm | 1000mm |
| TNL513A200 | 513mm | 22mm | 2000mm |
| TNL513A220 | 513mm | 22mm | 2200mm |
| TNL513A300 | 513mm | 22mm | 3000mm |
QUICK側推器艏推管-鋁合金材質
| MODEL 型號 | ØTUNNEL 管直徑 | THICKNESS 厚度 | LENGHT 管長 |
|---|---|---|---|
| TNL110AL100 | 110mm | 5mm | 1000mm |
| TNL185AL100 | 185mm | 4mm | 1000mm |
| TNL300AL100 | 300mm | 11mm | 1000mm |
| TNL300AL120 | 300mm | 11mm | 1200mm |
| TNL300AL200 | 300mm | 11mm | 2000mm |
| TNL386AL100 | 386mm | 10mm | 1000mm |
| TNL386AL120 | 386mm | 10mm | 1200mm |
| TNL386AL150 | 386mm | 10mm | 1500mm |
| TNL513AL150 | 513mm | 22mm | 1500mm |
| TNL513AL200 | 513mm | 22mm | 2000mm |
*其餘長度可接受訂製
